Overview

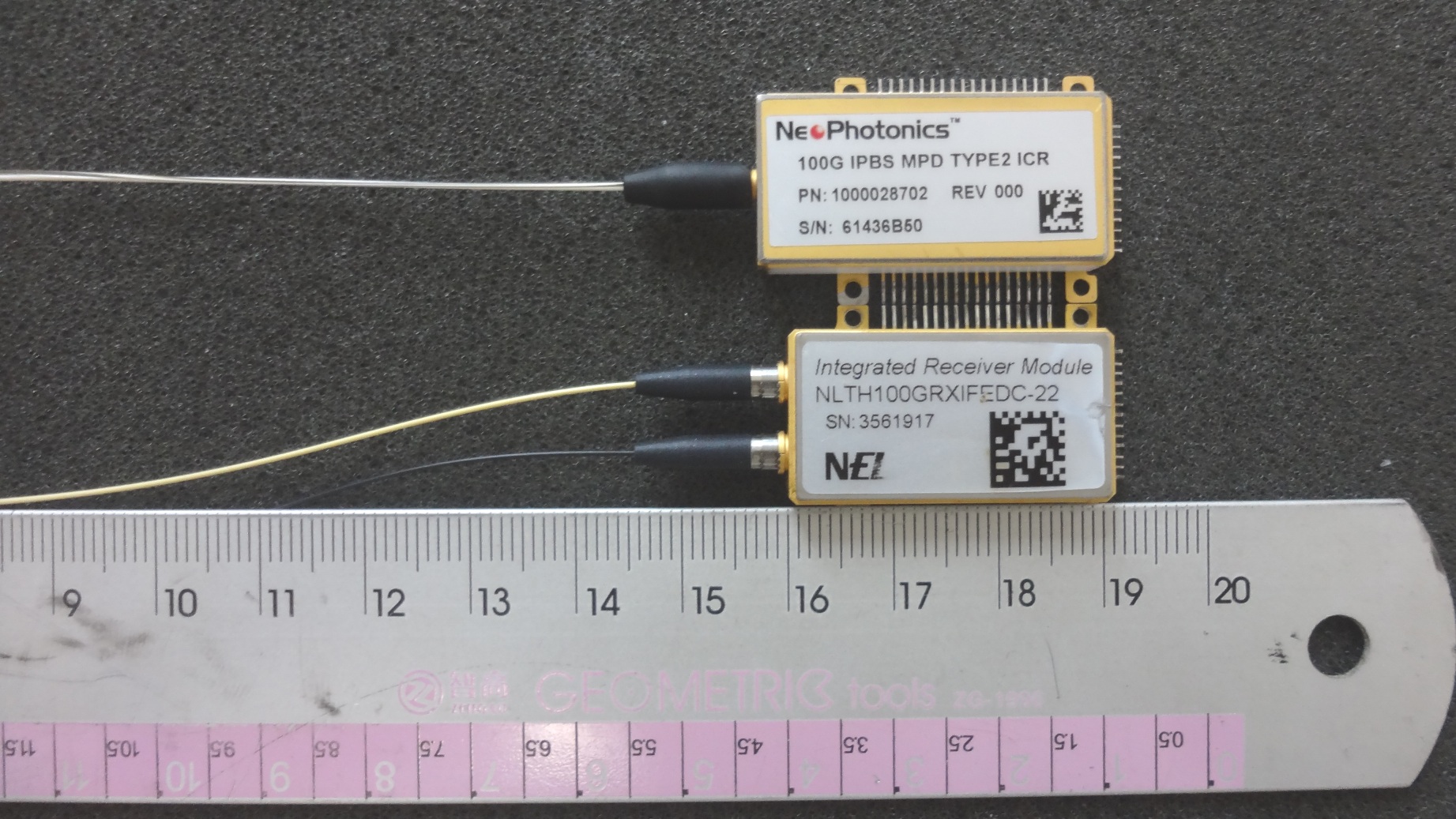

Designed for high-density linecards and CFP pluggable transceivers, the NeoPhotonics
Type 2 Coherent Receiver provides advanced demodulation to analyze the state-of-polarization
and optical phase of a phase-modulated signal relative to an externally supplied
optical reference. This enables the recovery of the phase-polarization constellation of
100 G/s Dual Polarization Quadrature Phase Shift Keyed (DP-DQPSK) format signals as well as
8-QAM (Quadrature Amplitude Modulation) and 200G 16-QAM format signals.
The ICR incorporates four sets of high sensitivity balanced photodiodes with four differential
linear amplifiers to provide four output channels at 32 GBaud and above. The Type 2 Coherent
receiver is compliant with Optical Internetworking Forum standard “Implementation Agreement
for Integrated Dual Polarization Intradyne Coherent Receivers” OIF-DPC-RX-01.2 Type 2.
Features and Benefits
· Compliant with OIF "Implementation Agreement for Integrated Dual Polarization
Intradyne Coherent Receivers" OIF-DPC-RX-01.2 Type 2
· 33x22x5.5mm
· C-band,L-band, A-band, 32 Gbaud and above
· High performance - very high CMRR
· Integrated VOA and MPD simplify line cards
· -5°C to 80°C operation
· Telcordia GR-1221-Core compliant
· Telcordia GR-468-Core compliant
>
