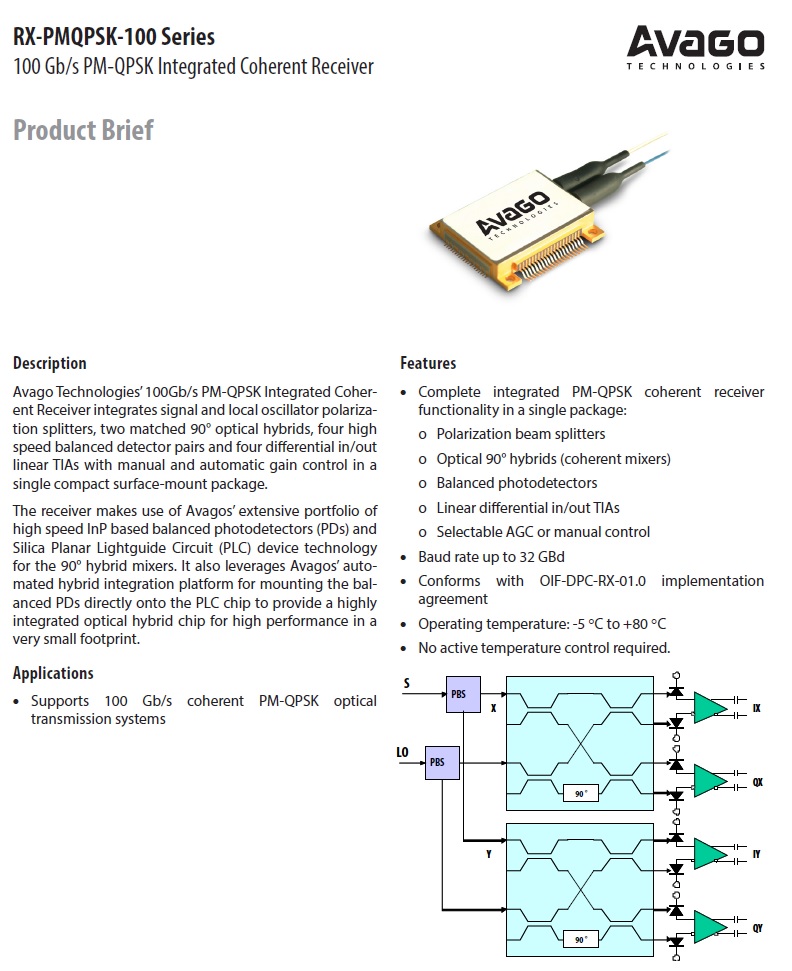

CyOptics相干Avago安華高科技40mm尺寸100G速率PM-QPSK型號(hào)RX-PMQPSK-100系列
Description
Avago Technologies’ 100Gb/s PM-QPSK Integrated Coherent Receiver integrates signal and local oscillator polarization splitters, two matched 90° optical hybrids, four high speed balanced detector pairs and four differential in/out linear TIAs with manual and automatic gain control in a single compact surface-mount package.
The receiver makes use of Avagos’ extensive portfolio of high speed InP based balanced photodetectors (PDs) and Silica Planar Lightguide Circuit (PLC) device technology for the 90° hybrid mixers. It also leverages Avagos’ automated hybrid integration platform for mounting the balanced PDs directly onto the PLC chip to provide a highly integrated optical hybrid chip for high performance in a very small footprint.
Applications
• Supports 100 Gb/s coherent PM-QPSK optical transmission systems
Features
• Complete integrated PM-QPSK coherent receiver functionality in a single package:
o Polarization beam splitters
o Optical 90° hybrids (coherent mixers)
o Balanced photodetectors
o Linear differential in/out TIAs
o Selectable AGC or manual control
• Baud rate up to 32 GBd
• Conforms with OIF-DPC-RX-01.0 implementation agreement
• Operating temperature: -5 °C to +80 °C
• No active temperature control required.
>
