16GHz Discovery DSC 系列 DSC30S,40S,50S 高速模擬光電探測(cè)器高功率低失真 PIN Diodes
帶光纖尾纖輸入，3dB典型帶寬16GHz，可用于微波光子通信；
射頻SMA/K口，低失真，線性PIN模擬探測(cè)器，超寬工作波段800~1650nm；
寬響應(yīng)范圍，可承受最高17dBm光功率，響應(yīng)度0.8A/W。
InGaAs PIN Photodiodes to 20 GHz with High Optical Power Handling
Description:
These high speed photodiodes are hermetically sealed, high reliability, low harmonic
distortion photodiode modules designed for high optical power applications with

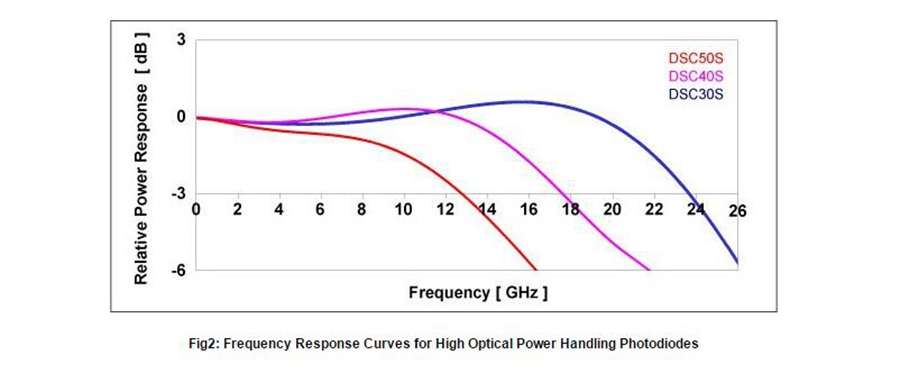

minimum bandwidths of 10, 14 and 18 GHz, respectively. The devices are well suited
for receiver applications with optical preamplification, and are available either with
or without an internal 50 ohm termination. These photodiode modules are available in
either a K-connector package or a miniature surface mount package with CPW
(coplanar waveguide) RF output, and utilizes Discovery's high-reliability InGaAs photodiode technology.
Salient Features:
High linearity photodiodes up to 22 GHz
High Current Handling (up to 20 mA)
Lowest PDL (typical 0.05 dB)
Useable spectral wavelength range of 800-1650 nm
Low Group Delay
Low Harmonic Distortion
K-connector or surface mount package options
Bellcore GR-468 Qualified
One device for multiple wavelengths reduces operational and inventory costs
Applications:
Optically Amplified Systems
RZ, NRZ, Super FEC Formats to 20 Gb/s
High Dynamic Range, Analog RF Links over Fiber
Rapid Doppler-Shift LIDAR Measurements
Coherent Lightwave Systems
Ideal Front-End O/E Converter for Test Instruments
