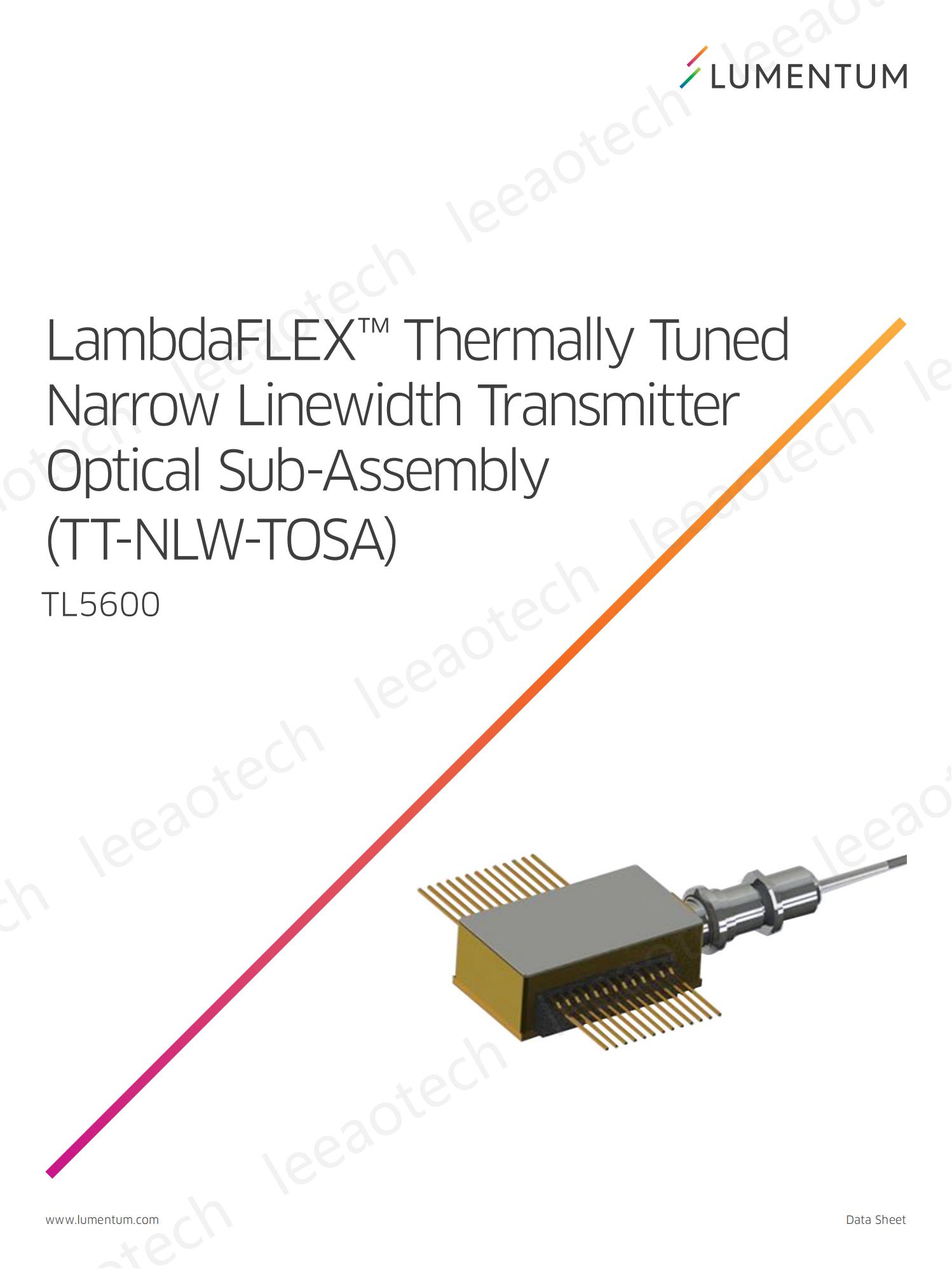

Lumentum TL5600 CW TOSA可調(diào)激光器 窄線寬100kHz 輸出功率17dBm 支持光纖傳感快速掃描
Lumentum TL5600 CW TOSA可調(diào)激光器 窄線寬100kHz 輸出功率17dBm 支持光纖傳感快速掃描
Lumentum TL5600 CW TOSA可調(diào)激光器 窄線寬100kHz 輸出功率17dBm 支持光纖傳感快速掃描
Key Features
? Full C-band tunable source (1527 -1568 nm) based on OIF ITLA
footprint
? High power +17.0 dBm nominal EOL
? Variable output power range 9 dB
? Electronic shutter for dark tuning
? Low power dissipation, 3.5 W EOL
? Narrow line-width, 100 kHz maximum
? Excellent SMSR >40 dB
? Low RIN
? Un-shuttered frequency fine tuning capability ±10 GHz
? Case operating temperature range -5°C to +75°C
? RoHS compliant 6/6
Applications
? Coherent optical communication systems
? Long haul/ultra-long haul
? Regional metro
? Test and measurement
