MITSUBISHI三菱10G速率DFB激光器模塊波長1550nm保偏光纖功率15mW，F(xiàn)U-68PDF

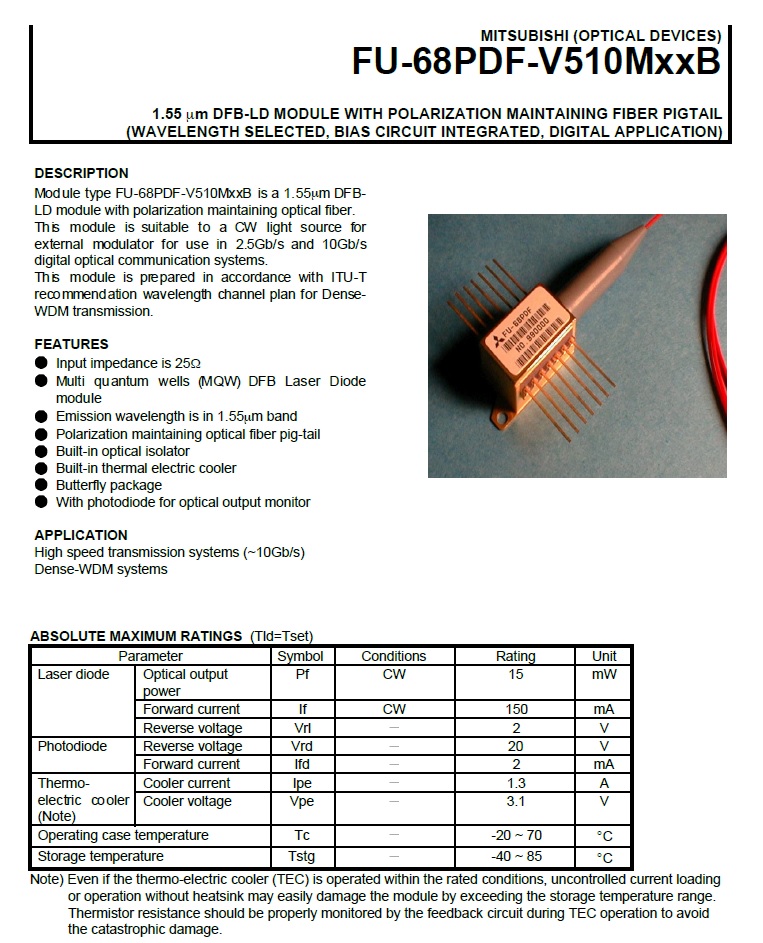

DESCRIPTION
Module type FU-68PDF-V510MxxB is a 1.55mm DFBLD
module with polarization maintaining optical fiber.
This module is suitable to a CW light source for
external modulator for use in 2.5Gb/s and 10Gb/s
digital optical communication systems.
This module is prepared in accordance with ITU-T
recommendation wavelength channel plan for Dense-
WDM transmission.
FEATURES
Input impedance is 25W
Multi quantum wells (MQW) DFB Laser Diode
module
Emission wavelength is in 1.55mm band
Polarization maintaining optical fiber pig-tail
Built-in optical isolator
Built-in thermal electric cooler
Butterfly package
With photodiode for optical output monitor
APPLICATION
High speed transmission systems (~10Gb/s)
Dense-WDM systems
>
