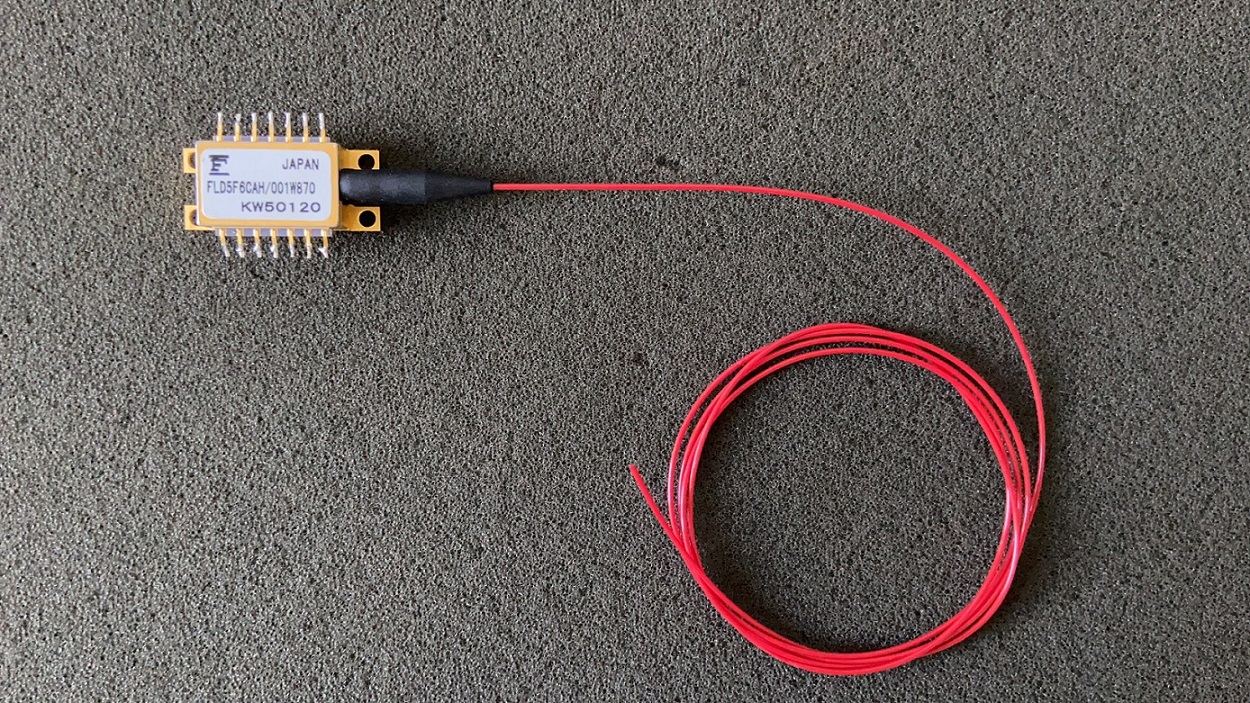

Eudyna 1550nm Continuous Wave 10mW CW DFB Laser 2.5/10Gbs DWDM System FLD5F6CAH

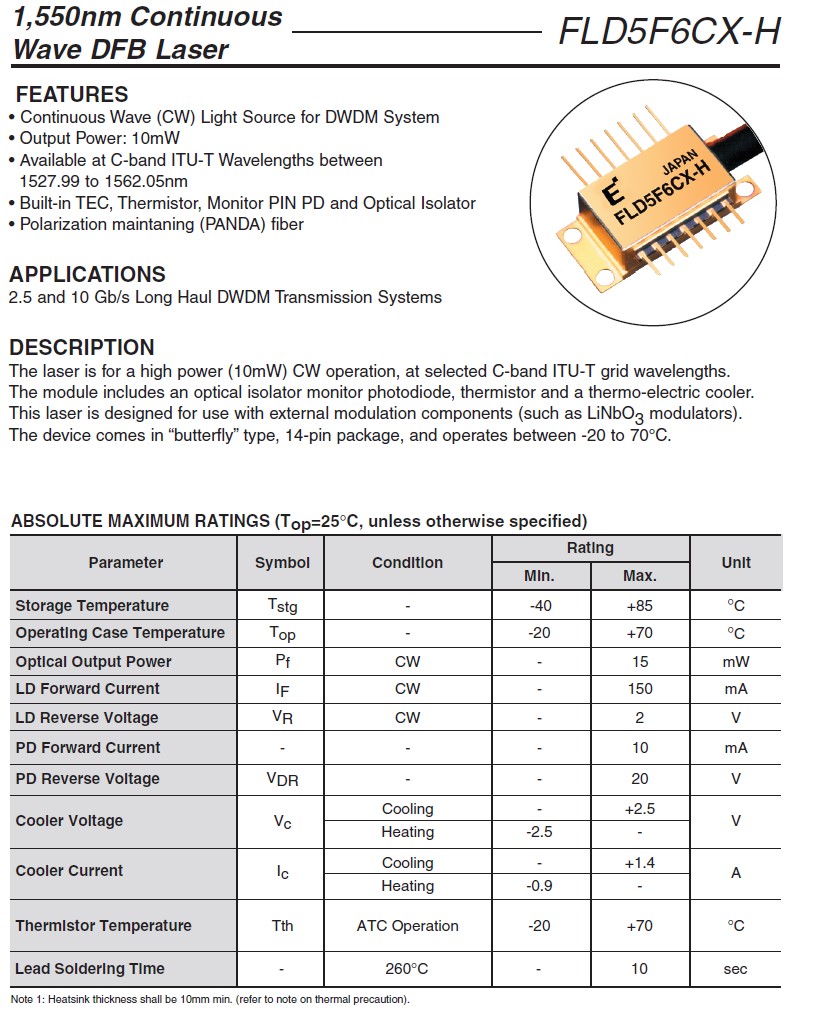

FEATURES
? Continuous Wave (CW) Light Source for DWDM System
? Output Power: 10mW
? Available at C-band ITU-T Wavelengths between
1527.99 to 1562.05nm
? Built-in TEC, Thermistor, Monitor PIN PD and Optical Isolator
? Polarization maintaning (PANDA) fiber
APPLICATIONS
2.5 and 10 Gb/s Long Haul DWDM Transmission Systems
DESCRIPTION
The laser is for a high power (10mW) CW operation, at selected C-band ITU-T grid wavelengths.
The module includes an optical isolator monitor photodiode, thermistor and a thermo-electric cooler.
This laser is designed for use with external modulation components (such as LiNbO3 modulators).

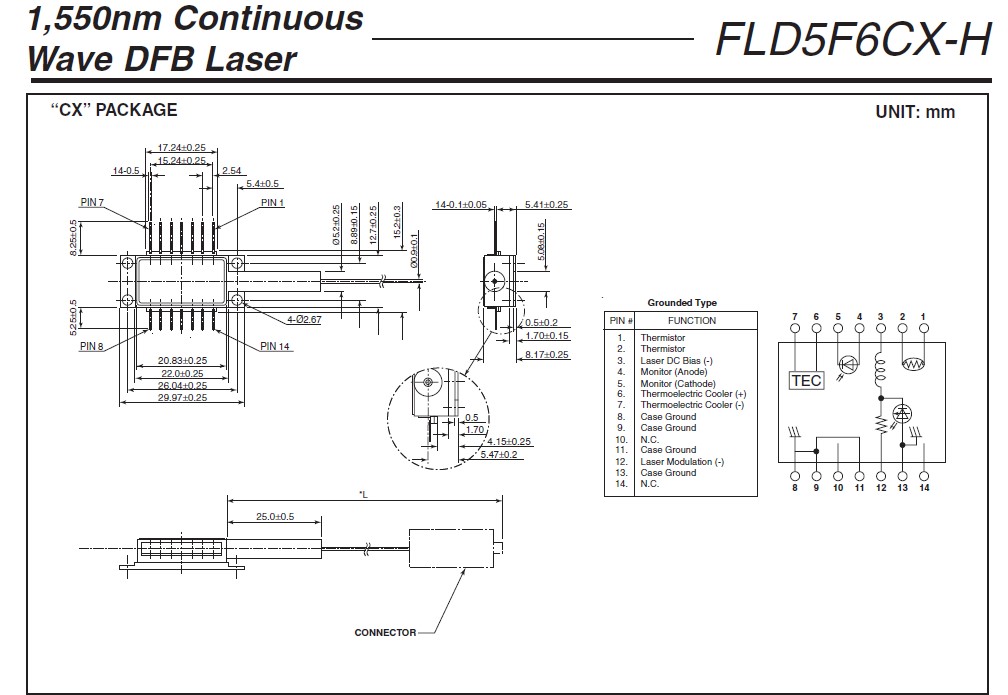

The device comes in “butterfly” type, 14-pin package, and operates between -20 to 70°C.
