Emcore可調(diào)激光器 TTX1995系列 Micro-ITLA 40/100/400Gbs速率 C波段超窄線寬3278通道
Emcore可調(diào)激光器 TTX1995系列 Micro-ITLA 40/100/400Gbs速率 C波段超窄線寬3278通道
Emcore可調(diào)激光器 TTX1995系列 Micro-ITLA 40/100/400Gbs速率 C波段超窄線寬3278通道

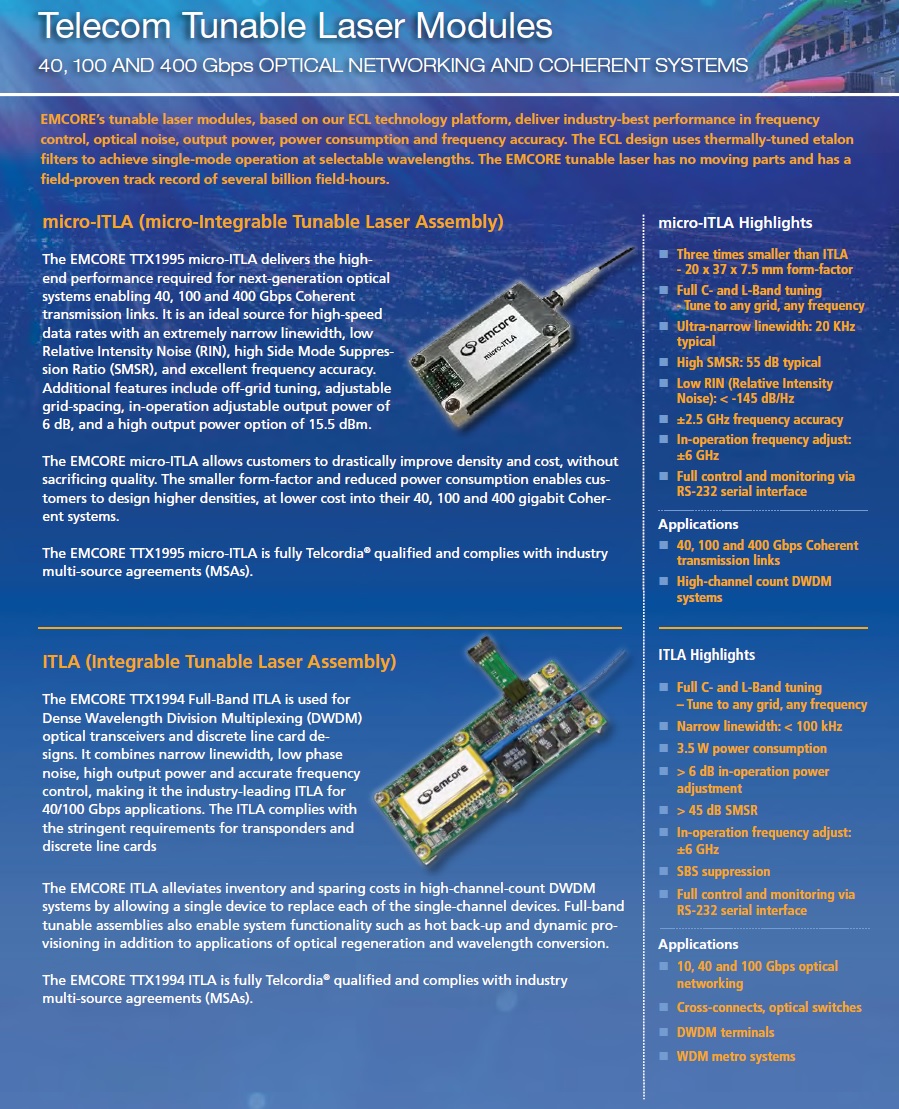

Micro-ITLA Highlights
·Three times smaller than ITLA - 20 x 37 x 7.5 mm form-factor
· Full C- and L-Band tuning - Tune to any grid, any frequency
· Ultra-narrow linewidth: 20 KHz typical
· High SMSR: 55 dB typical
· Low RIN (Relative Intensity Noise): < -145 dB/Hz
· ±2.5 GHz frequency accuracy
· In-operation frequency adjust: ±6 GHz
· Full control and monitoring via RS-232 serial interface
Applications
· 40, 100 and 400 Gbps Coherent transmission links
· High-channel count DWDM systems
>
