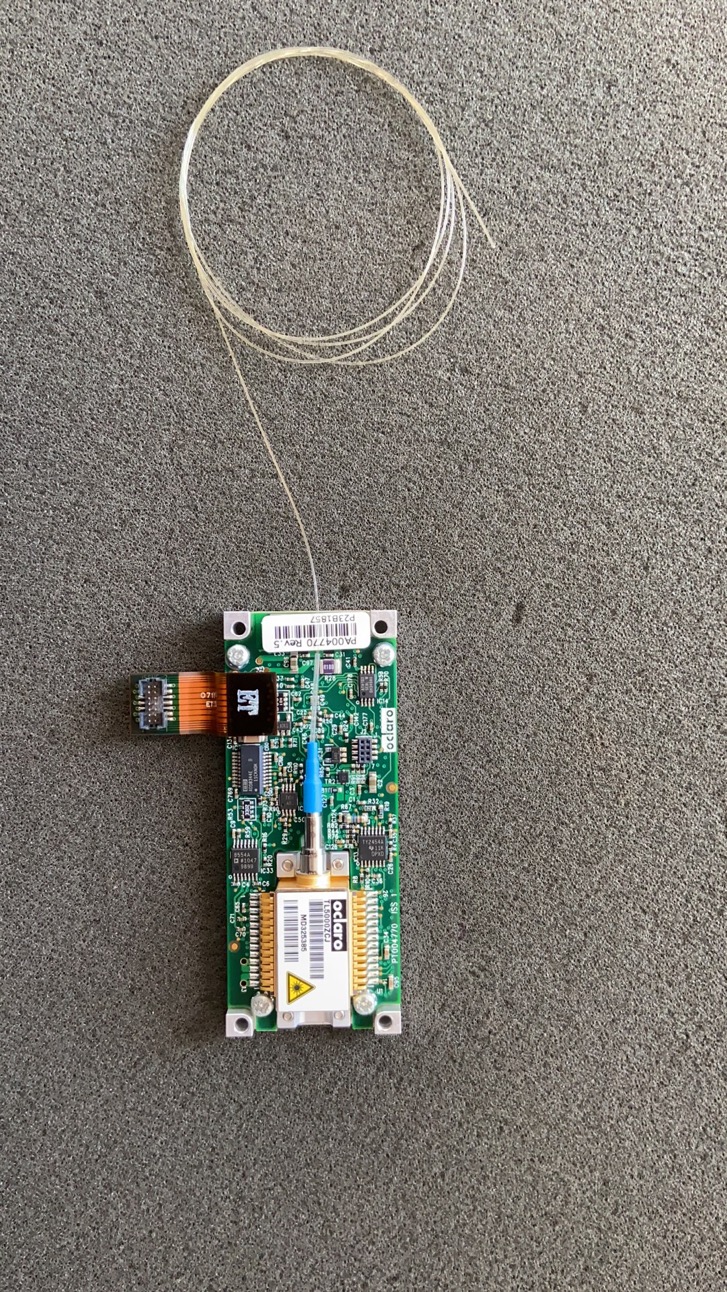

Oclaro CW C Band Integrable Tunable Laser ITLA 96CH 大功率7-13dBm 支持連續(xù)掃描 TL5000ZCJ
Features
? Full C-Band tunable source (1529-1567nm) based on OIF iTLA footprint
? High power +13dBm EOL
? High speed electronic tuning control (<10ms channel to channel)
? Electronic shutter for dark tuning
? Low power dissipation, 3.8W typical
? Narrow line-width, 5MHz maximum
? Excellent SMSR >40dB
? Low RIN
? Wavelength stabilized for 50GHz or 100GHz ITU-T channel spacing
? Optical power monitor
? FM Dither / Trace tone capability
? Case operating temperature range -5oC to +75oC
? Simple RS232 interface
? RoHS compliant
? Telcordia Qualified to GR 468
Applications
? Long Haul/Ultra Long Haul
? Regional Metro
? Test and Measurement
