JDSU 10G速率 光射頻調(diào)制驅(qū)動放大器 MZ H301-1210

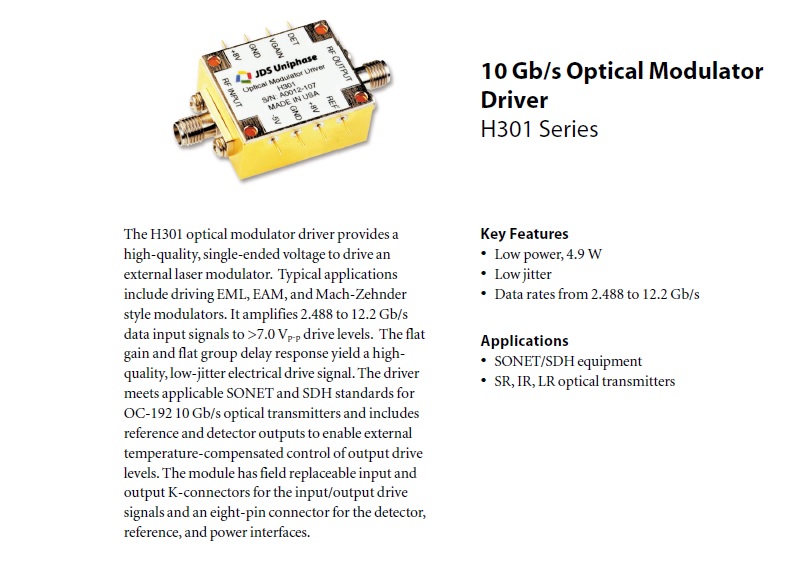

The H301 optical modulator driver provides a high-quality, single-ended
voltage to drive an external laser modulator. Typical applications
include driving EML, EAM, and Mach-Zehnder style modulators. It amplifies
2.488 to 12.2 Gb/s data input signals to >7.0 Vp-p drive levels. The flat
gain and flat group delay response yield a highquality, low-jitter electrical
drive signal. The driver meets applicable SONET and SDH standards for
OC-192 10 Gb/s optical transmitters and includes reference and detector
outputs to enable external temperature-compensated control of output drive
levels. The module has field replaceable input and output K-connectors for the
input/output drive signals and an eight-pin connector for the detector,
reference, and power interfaces.
