光開關(guān) Sercalo MEMS 1240-1640nm 1x4 Switch 1dB Insertion Loss Pin Supply 5V SW-1x4
光開關(guān) Sercalo MEMS 1240-1640nm 1x4 Switch 1dB Insertion Loss Pin Supply 5V SW-1x4
光開關(guān) Sercalo MEMS 1240-1640nm 1x4 Switch 1dB Insertion Loss Pin Supply 5V SW-1x4

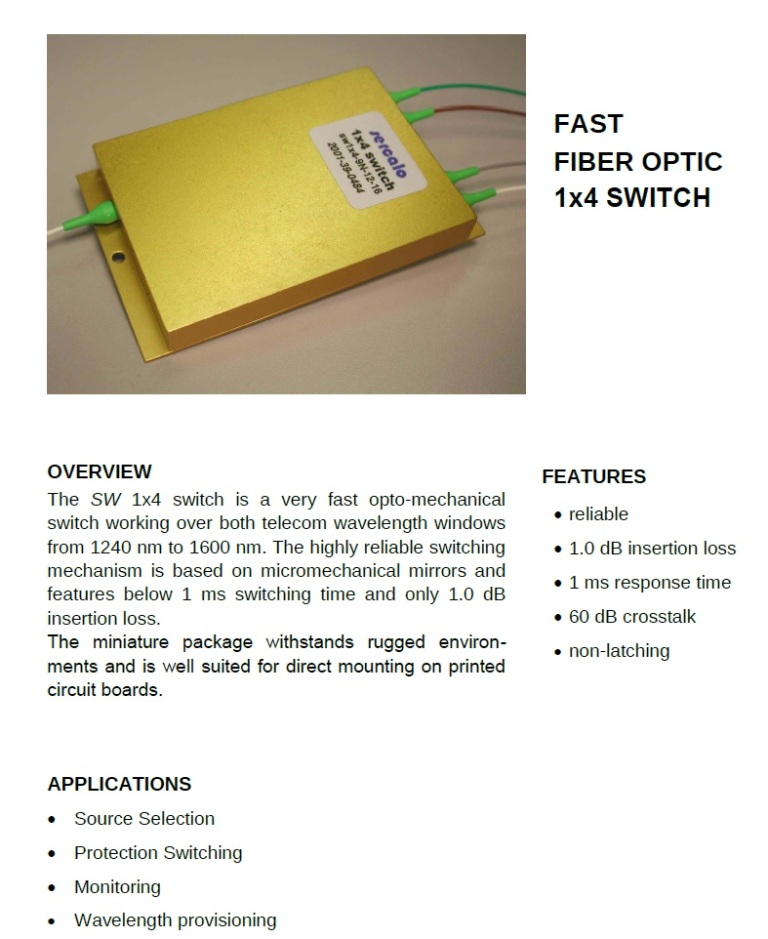

Overview
The SW 1x4 switch is a very fast opto-mechanical switch working over
both telecom wavelength windows from 1240 nm to 1600 nm.
The highly reliable switching mechanism is based on micromechanical
mirrors and features below 1 ms switching time and only 1.0 dB insertion loss.
The miniature package withstands rugged environments and is well suited for
direct mounting on printed circuit boards.
Features
reliable
1.0 dB insertion loss
1 ms response time
60 dB crosstalk
non-latching
Applications
Source Selection
Protection Switching
Monitoring
Wavelength provisioning
